IKIGAI
Garage Conversion to ADU
The 1st level of a typical San Franciso house is converted to a legal ADU to host the parents of the owners.
Universal Design is key for this project as the couple plans to age in place.
ADU local code requirement
Walls, floor/ceilings designed to reduce noise transmission
Fire rated walls and door between garage and ADU
Sprinkler system in ADU
Adequate lighting, contrasted natural finishes, a fully accessible bathroom, and a kitchen adapted to aging in place accommodate the present and future needs of the retired couple. An open path from the entrance to the primary bathroom allows easy circulation throughout the ADU. Custom built-in cabinetry provides personalized organization while maintaining the minimalist Japandi style.
Location: San Francisco
Size: 1,300 SqFt

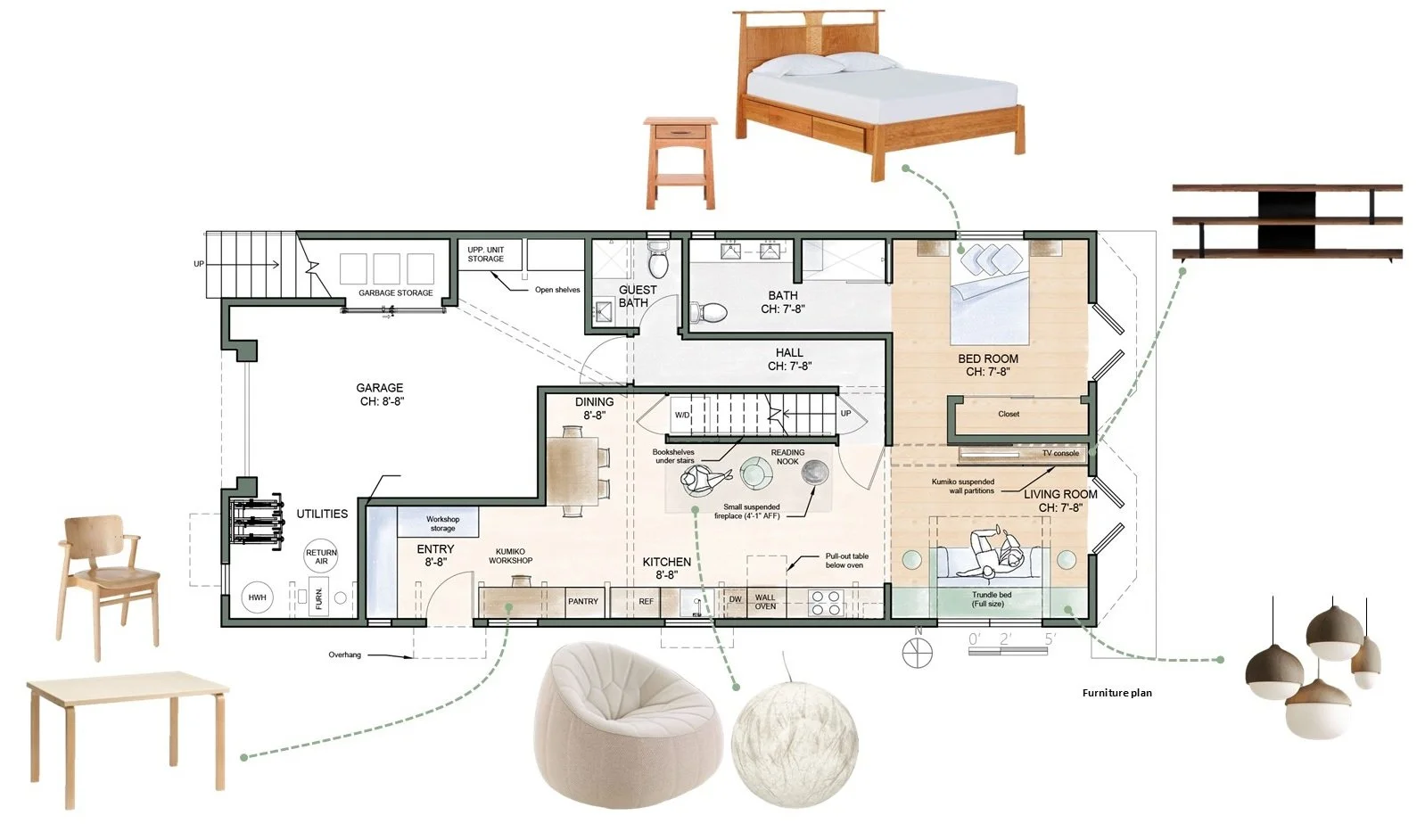

Floor plan

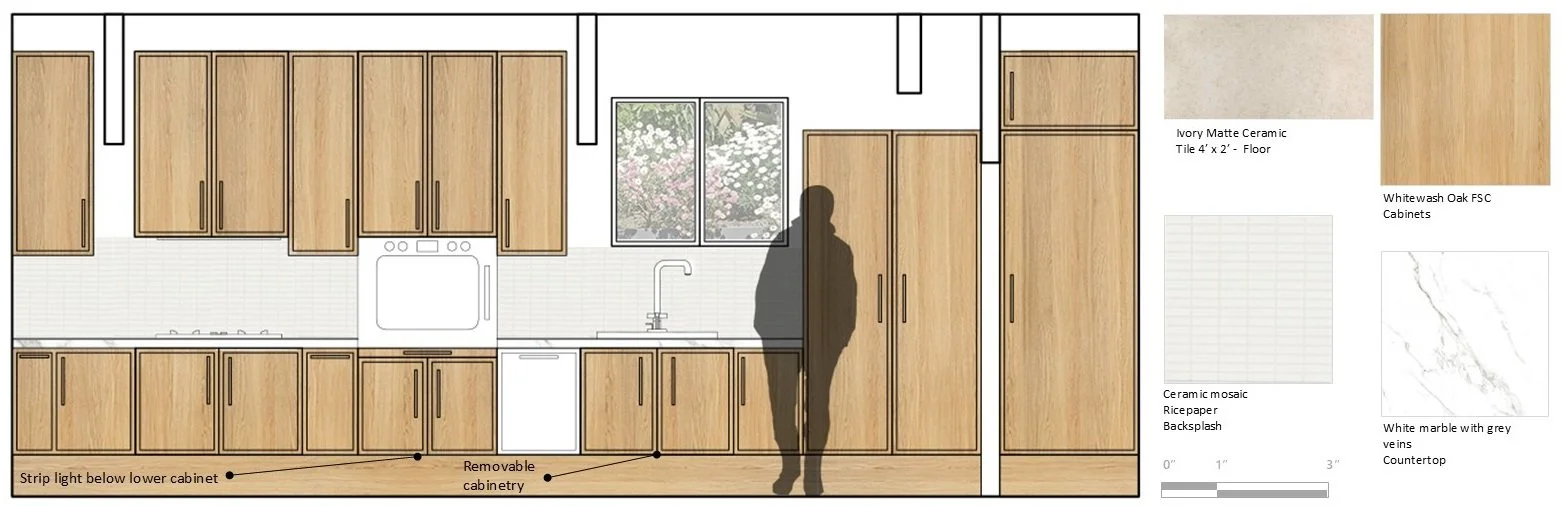

Kitchen elevation
ADU considerations:
strip light under lower cabinet
removable cabinet under sink and cook range
oven accessible from wheelchair
accessible sink in the bathrrom
ADA compliant shower

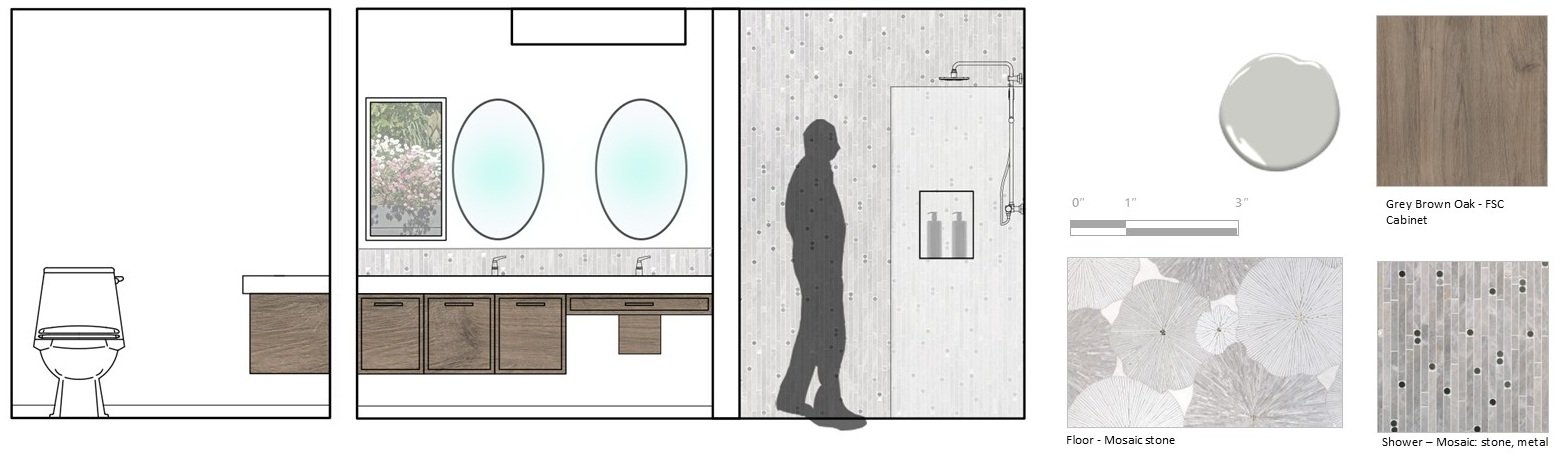

Bathroom elevations

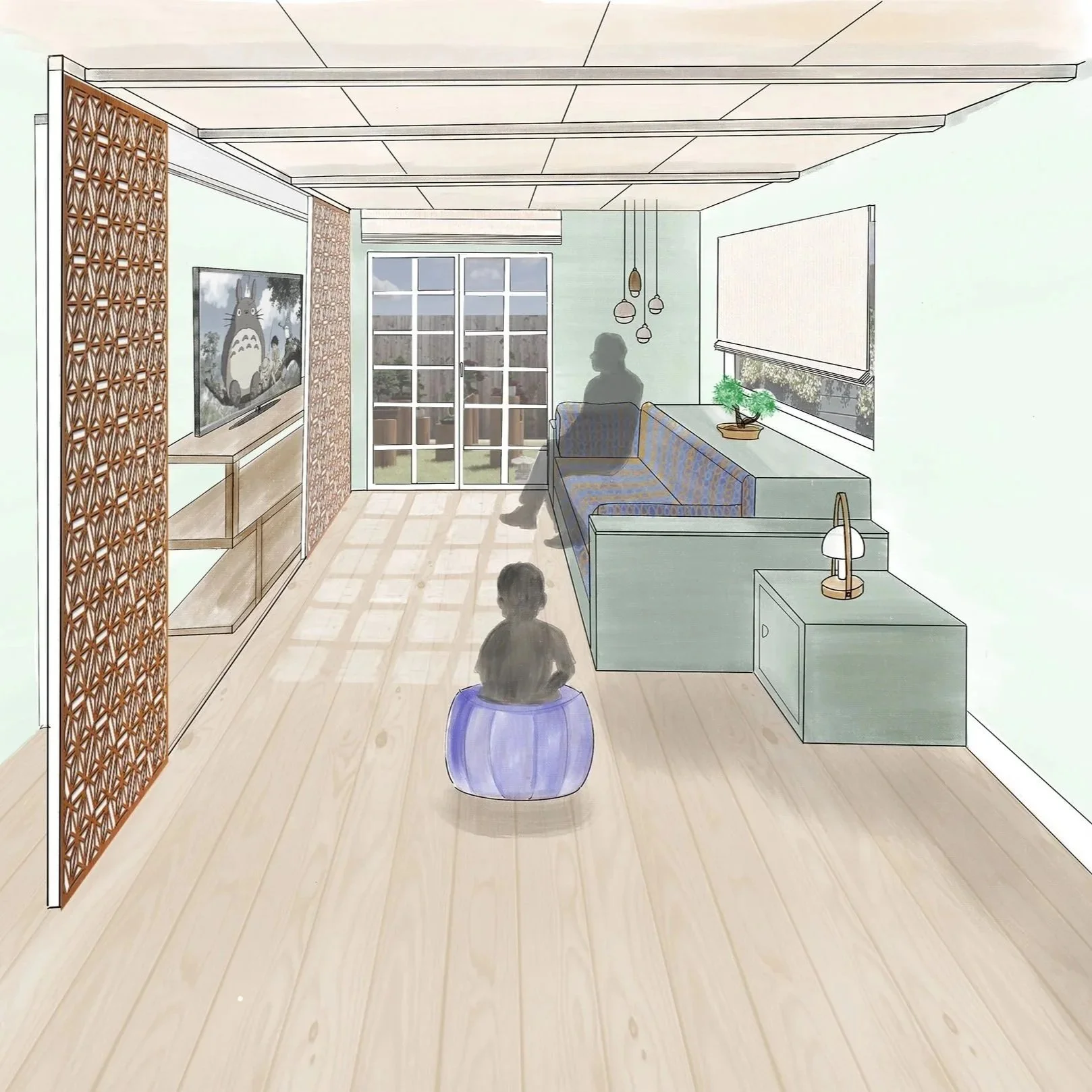

Living Room

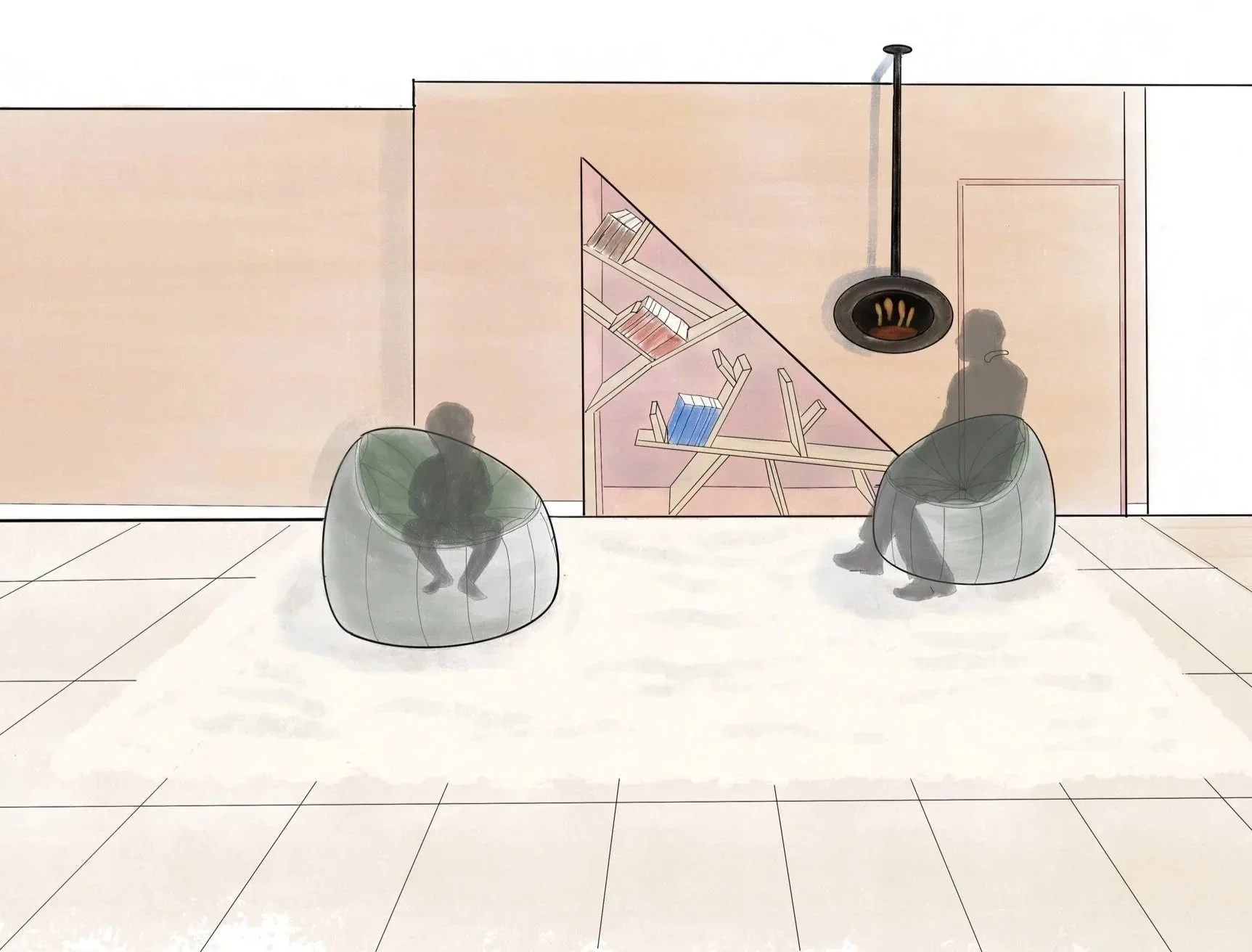

Reading Nook

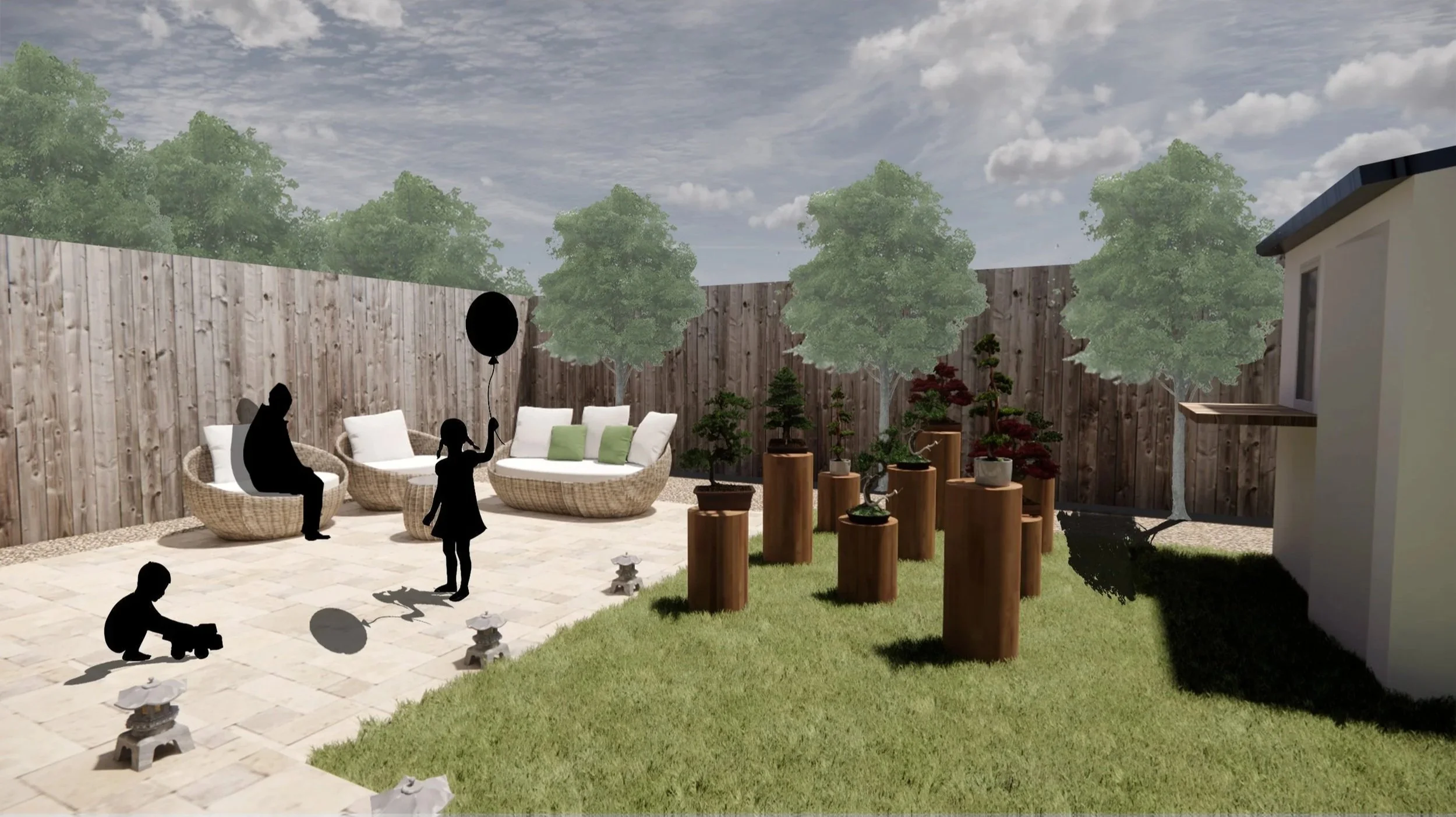

Garden terrace

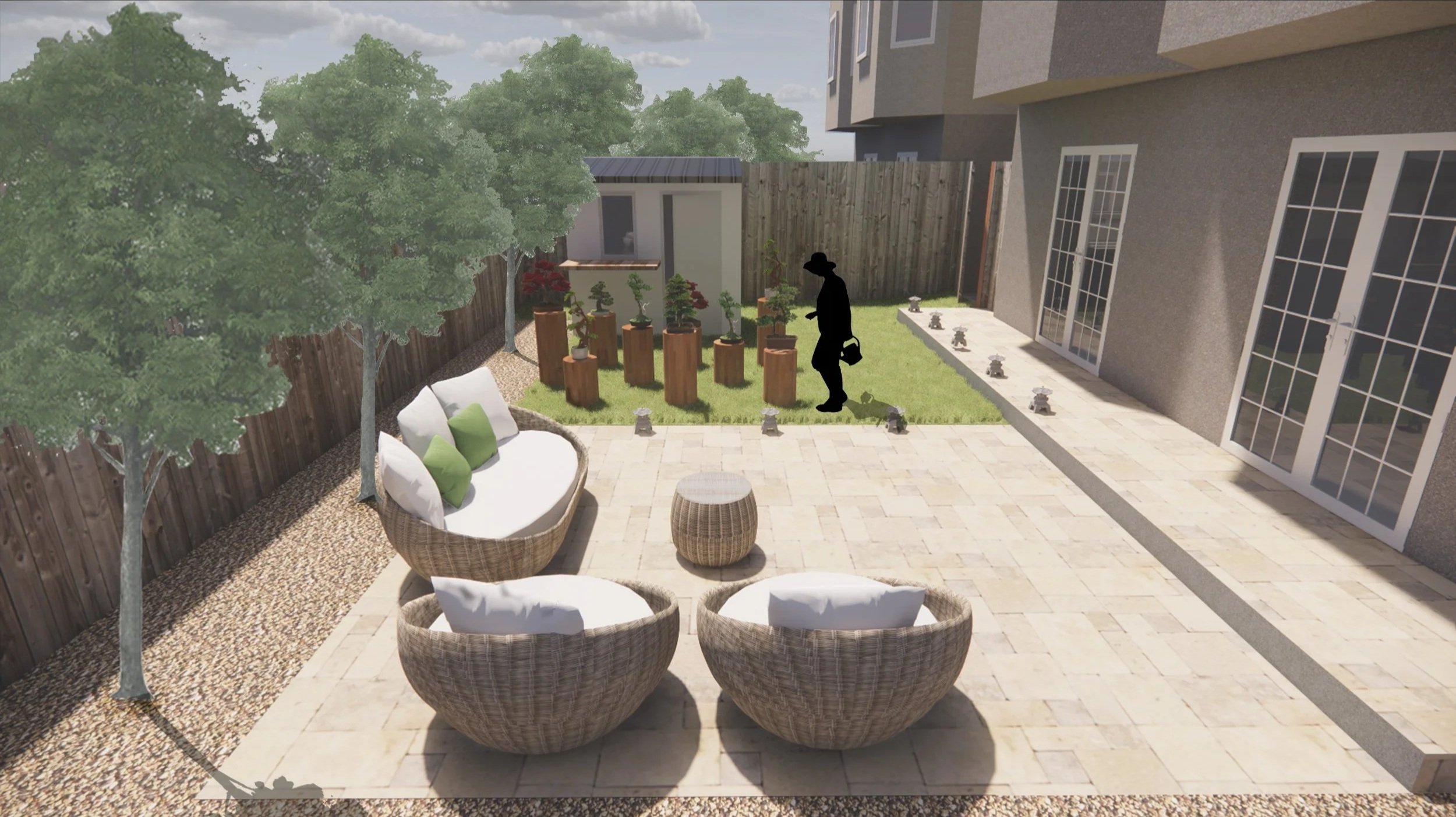

Bonsai Garden
